Unlocking the Secrets of RTL in Circuit Design

1. What in the world is RTL, anyway?

Ever wondered how those intricate computer chips and other digital circuits are brought to life? It's not just magic, although it sometimes feels like it! A crucial part of the process is something called Register-Transfer Level, or RTL. Think of it as a sophisticated blueprint for digital circuits, expressed in a way that computers can understand and translate into physical hardware.

RTL isn't about drawing schematics with individual transistors. It's a higher-level abstraction, focusing on the flow of data between registers (small memory locations) and the operations performed on that data. Imagine a recipe where you're not specifying how each grain of salt should be measured, but rather, the overall steps of combining ingredients. That's the kind of abstraction RTL provides. We're concerned with data movement and manipulation, not the minute electrical details. Its less about wires and more about what scootches down them.

Writing RTL code feels a lot like programming, using Hardware Description Languages (HDLs) like Verilog or VHDL. These languages allow engineers to describe the behavior of the circuit in a textual format. It's like writing instructions for the hardware, telling it what to do with the data it receives. This code then gets fed into specialized software that synthesizes the RTL description into a physical layout, ready to be etched onto silicon.

So, in essence, RTL bridges the gap between abstract ideas of how a digital system should function and the actual physical implementation of that system. It allows designers to work with complex designs in a manageable way, and provides a clear and testable description of the circuit's intended behavior. Without RTL, designing modern digital circuits would be an absolute nightmare imagine trying to build a skyscraper one brick at a time without a blueprint!

Diving Deeper

2. The nuts and bolts of RTL

Let's unpack this "Register-Transfer Level" thing a bit more. The core concept revolves around registers, which act like temporary holding cells for data within the circuit. These registers store binary values, which are then manipulated according to the instructions in the RTL code. Think of registers as your kitchen bowls, ready to hold ingredients before theyre mixed.

A "transfer" refers to the movement of data from one register to another, or from an external input to a register. These transfers are typically triggered by clock signals, which act as a metronome, synchronizing the operations within the circuit. Picture it like a synchronized dance, where each register passes the baton (data) to another on a precise beat.

The operations performed on the data are typically expressed using logical and arithmetic operators. These operators manipulate the data as it is transferred between registers. Examples include addition, subtraction, logical AND, logical OR, and many more. These are like the various tools you use in the kitchen — knives, whisks, blenders — each performing a specific function on the ingredients (data).

For instance, you might have a piece of RTL code that says: "When the clock signal rises, transfer the value from register A to register B, and add 1 to it." This simple example illustrates the fundamental components of RTL: registers, data transfer, and data manipulation. All working together in harmony to do something useful!

Why is RTL so Important?

3. The bedrock of modern circuit design

You might be thinking, "Okay, RTL sounds interesting, but why is it such a big deal?" Well, the answer is multifaceted, but it boils down to efficiency, manageability, and testability. Designing circuits at the gate level (individual transistors) is incredibly complex and time-consuming for anything beyond the simplest circuits. RTL provides a much higher level of abstraction, allowing designers to focus on the overall functionality rather than the minute details. It's like planning a city layout instead of worrying about the placement of each individual brick.

Using RTL allows for modular design. Complex circuits can be broken down into smaller, more manageable modules, each described with its own RTL code. These modules can then be interconnected to create the complete system. This makes it easier to design, debug, and maintain complex circuits. It's like building a house with prefabricated sections, each easily assembled on site.

Furthermore, RTL designs can be easily simulated and verified. Before the circuit is even fabricated, engineers can run simulations to ensure that it behaves as expected. This helps catch errors early in the design process, saving time and money. Imagine testing your entire recipe with virtual ingredients before committing to a big grocery run!

Finally, and perhaps most importantly, RTL designs are portable. The same RTL code can be synthesized into different target technologies, such as FPGAs or ASICs. This allows designers to reuse their designs across different platforms. It's like having a cooking recipe that can be adapted to different ovens or cooking styles. This flexibility makes RTL an essential tool for modern circuit design.

The RTL Design Flow

4. How RTL makes a chip

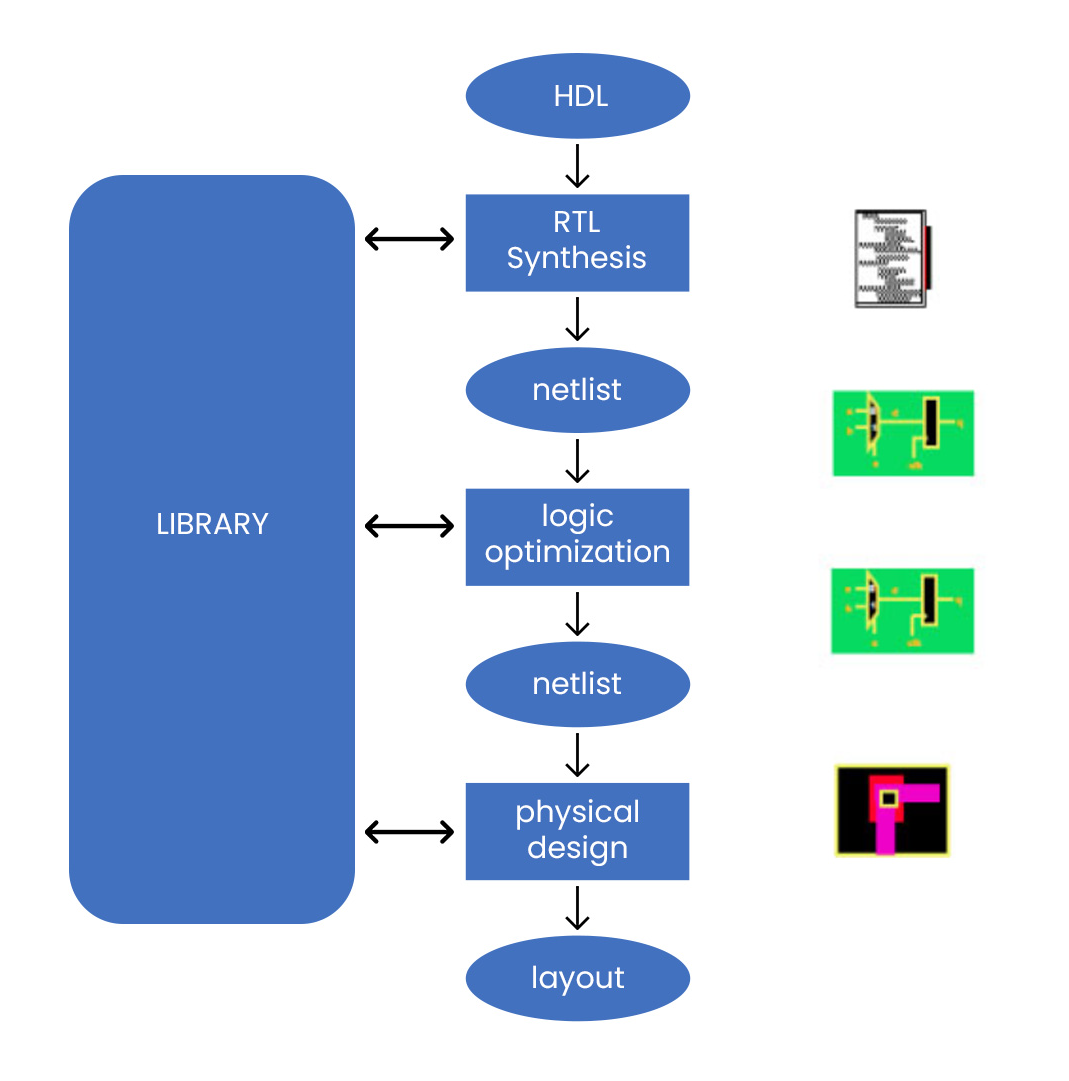

So, how does RTL fit into the overall circuit design process? Let's take a look at the typical RTL design flow. It all starts with a specification — a description of what the circuit should do. This specification is then translated into an RTL description using an HDL like Verilog or VHDL. This is where the magic begins, transforming a set of requirements into executable code that will eventually become hardware.

The RTL code is then simulated to verify that it meets the specification. This involves running the code with various inputs and checking that the outputs are as expected. Simulation is like a dress rehearsal before the big show, making sure everything is ready for the real performance. Any errors found during simulation are corrected, and the code is re-simulated until it passes all tests.

Once the RTL code is verified, it is synthesized into a gate-level netlist. Synthesis is the process of converting the RTL description into a network of logic gates (AND, OR, NOT, etc.). This is done using specialized synthesis tools, which take the RTL code as input and produce a gate-level netlist as output. Its like taking the recipe and figuring out exactly what ingredients you need and how to measure them all.

The gate-level netlist is then placed and routed. Placement involves assigning physical locations to each of the logic gates on the chip, and routing involves connecting the gates together with wires. This is done using specialized place and route tools. The final result is a physical layout that can be used to fabricate the chip. It's like carefully arranging all the ingredients and kitchenware on a countertop, making sure everything has enough space and can be easily accessed. Then off to the foundry for fabrication!

RTL

5. The human element

While RTL involves writing code and using sophisticated tools, it's important to remember that it's also a human endeavor. Successful RTL design requires a deep understanding of digital logic, circuit design principles, and the target application. It's not just about writing code that compiles; it's about writing code that is efficient, reliable, and maintainable. It's like knowing not just how to follow a recipe, but understanding the underlying principles of cooking to create something truly delicious.

Collaboration is also key. RTL designers often work in teams, with each member responsible for a different part of the design. Effective communication and collaboration are essential for ensuring that the different parts of the design work together seamlessly. Imagine a team of chefs, each specializing in a different dish, but all working together to create a complete and harmonious meal.

Furthermore, RTL design is a constantly evolving field. New techniques and tools are always being developed, and RTL designers need to stay up-to-date with the latest advances. This requires a commitment to continuous learning and professional development. It's like being a chef who is always experimenting with new ingredients and techniques to create innovative and exciting dishes. The learning never stops!

In conclusion, RTL is far more than just writing some lines of code. Its a blend of technical expertise, collaborative spirit, and a constant pursuit of innovation. Its the artistry behind creating the technology that shapes our world.

Frequently Asked Questions about RTL

6. Your burning questions answered!

Alright, let's address some of the most common questions about RTL that might be buzzing around in your brain.

Q: Is RTL the same as Verilog or VHDL?

A: Not quite. Verilog and VHDL are Hardware Description Languages (HDLs), which are the tools you use to write RTL code. RTL is the level of abstraction — the what you're describing — while Verilog/VHDL is the how you describe it. Think of it like this: RTL is the recipe, and Verilog/VHDL are the languages you use to write it down. You could even invent a new language to write the same recipe, the end result (RTL) is the same.

Q: What are the main advantages of using RTL over gate-level design?

A: The advantages are numerous! RTL is more abstract, making it easier to manage complex designs. It's also more portable, allowing you to synthesize the same RTL code to different target technologies. Plus, RTL designs are easier to simulate and verify, helping you catch errors early on. Bottom line: it saves time, money, and headaches!

Q: Do I need a computer science degree to learn RTL design?

A: While a computer science or electrical engineering background is certainly helpful, it's not strictly necessary. There are many online resources, courses, and tutorials available that can help you learn RTL design. A good understanding of digital logic and basic programming concepts is a good starting point. And of course, patience and a willingness to learn are key!
